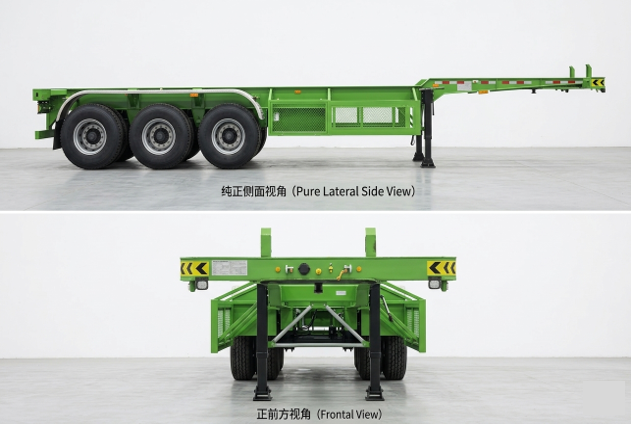

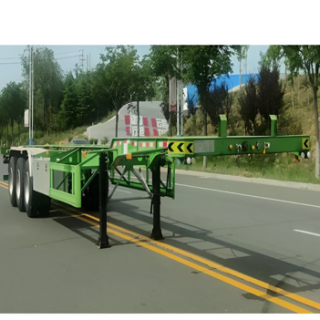

Container transport semi-trailer
Designed specifically for 45-foot TEE container transport, featuring a gooseneck structure for lightweight yet high-strength load-bearing capacity. conforming to Chinese national standards（GB）
Key Materials:
1. Side/Rear Protection Material: Q235B high-quality carbon structural steel, high strength, corrosion resistance, and durability.
2. Rear Underrun Protection: Bolted connection + frame welding, double reinforcement for enhanced safety.
3. Protection Section: 140mm × 65mm, ground clearance 430mm, excellent impact resistance.
Vehicle technical parameter | |
Product name | Container transport semi-trailer |
Overall Dimensions | 13950x2550,2500x1650,1600,1550,150 |
Cargo compartment size | xx |
Total mass | 40000 |
Rated load mass | 34000,34200,34500 |
Curb weight | 6000,5800,5500 |
Chassis | |
Axle | 3 |
Wheelbase | 7800+1310+1310,7430+1310+1310 |
Number of tires | 12 |
Tires | 11.00R20 12PR,12R22.5 12PR,295/60R2 |
Others | |
This vehicle is used to transport 45-foot containers, container model: TEE, and the vehicle is a small goose. Neck structure, overall frame height at the towing pin is 210mm, optional frame height at the towing pin available in 100mm. 180mm, 160mm, 150mm, and 140mm diameters; optional front panel style. With or without guide blocks, optional irregular -shaped holes in the main beam, optional support device. The optional combination lights are rectangular the fog lights are round, and the optional air suspension and ABS model are: CM2XL-4512. ABS manufacturer: Guangzhou Rule Kemi Automotive Electronics Co. Ltd. Limited Company EBS Model CM TESS Manufacturer: Guangzhou Rulikemi Automotive Electronics Co.. Led The company's side rear protection materials are all 235B, and the side protection is connected to the frame. The rear underrun protection device is bolted, while the rear guard is welded to the frame. Cross-sectional dimensions (mm) :140mmx65mm, height from ground: 430mm | |
