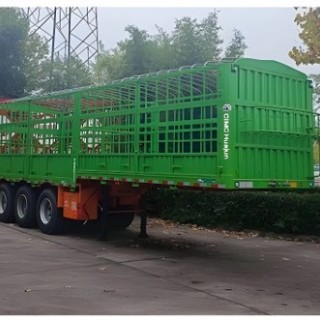

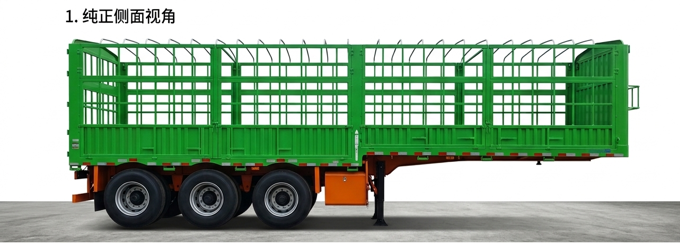

Semi-trailer for cargo transport

Protective Structure Materials (Core Durability)
1. Side Protection: Q235 Carbon Steel / Aluminum Alloy (Optional)
2. Rear Protection: Q235 Carbon Steel (Welded Structure, Higher Strength)
3. Connection Method: Side protection bolted connection; rear protection welded
Equipped with ABS, conforming to Chinese national standards（GB）

Optional Features: Mudguard material, outrigger style, side protection post connection style, front post can be reversed at a right angle

Send Inquiry Now

Vehicle technical parameter
Product name	Semi-trailer for cargo transport
Overall Dimensions	9500x2500,2450,2400x3300,3350,3400
Cargo compartment size	9400x2420,2400,2380,2370,2350,2330
Total mass	40000
Rated load mass	34200,34500,34700
Curb weight	5800,5500,5300
Chassis
Axle	3
Wheelbase	3880+1310+1310,3980+1310+1310,408
Number of tires	12
Tires	11.00R20 12PR,11.00R20 14PR,12R22.5
Others
The height from the floor of the cargo box to the top of the cargo stand is 2600mm, 2400mm, 2200mm, 2100mm, 2000mm, 1900mm, or 1800mm. The cargo stand can be single-layered or double-layered, with options for 5-door, 7-door, or 9-door configurations. The cargo box panels can be corrugated or flat, with optional hinge styles and locking bar styles. Each door can have either 3 or 2 locking bars. Optional features include a rear push-pull block structure and a slit-and-open design above the tires. Side protection structures and materials are optional. ABS system manufacturers/models include: Guangzhou Ruili Kemi Automotive Braking Technology Development Co., Ltd./CM2XL-4S/2M; Guangzhou Xihe Automotive Electronic Equipment Co., Ltd./XH-GQ4S2M-E01; Zhejiang Wan'an Technology Co., Ltd./VIE-TABS II; Wabco Automotive Control Systems (China) Co.. Ltd./400 5000880. Rear guard section height/width/ground clearance: 140mm/70mm/480mm; Side and rear guard material/connection method; Side guard Q235 or aluminum alloy; Rear guard Q235/rear guard welded; Side guard bolt connection. This vehicle is equipped with air suspension, with optional outrigger strut style. Optional front pillar inverted right angle structure, optional mudguard material, and optional side guard vertical component connection style.
