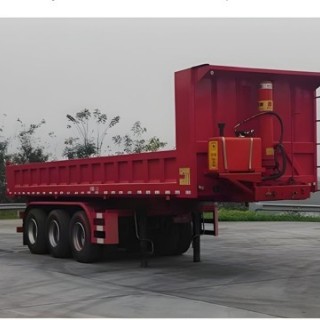

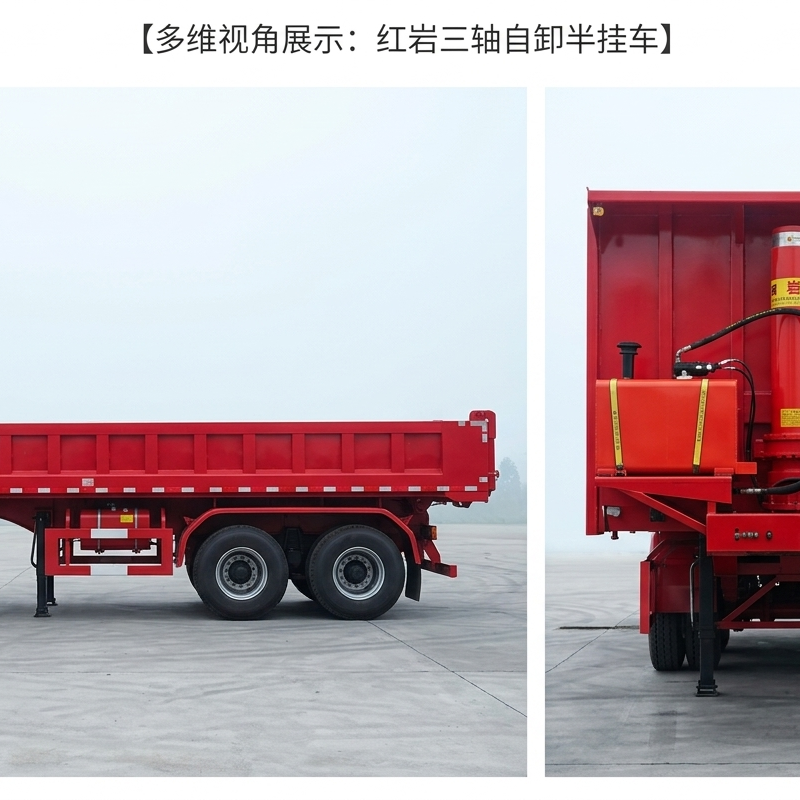

Dump semi-trailer semi-trailer
1. Side Protection Device: Q235 high-quality carbon steel, bolted connection, sturdy and durable, easy to install and disassemble.
2. Rear Underrun Protection Device: Q235 high-quality carbon steel, welded reinforcement, stronger load-bearing capacity and protection.
3. Cross-sectional Dimensions: 140mm × 60mm, ground clearance 450mm, compliant with collision resistance standards.
Product Core Highlights (Key Points)
1. Unloading Method: Rear unloading type, efficient unloading, stable operation.
2. Axle Configuration: Three axles, strong load-bearing capacity, good road condition adaptability.
3. Tire Specifications: 12R22.5 12PR, 12 tires, wear-resistant and load-bearing.
4. Safety Configuration: Standard ABS, safer braking.
5. Optional Configuration: Mudguard structure optional to meet different usage scenarios.
6.Conforming to Chinese national standards(GB)
Vehicle technical parameter | |
Product name | Dump semi-trailer |
Overall Dimensions | 9300,9600,9800x2550x3400,3500,3600 |
Cargo compartment size | 8500,8800,9000x2300,2350,2420x600 |
Total mass | 36200 |
Rated load mass | 28700,28900,29100,29350 |
Curb weight | 7500,7300,7100,6850 |
Chassis | |
Axle | 3 |
Wheelbase | 4100+1310+1310,4400+1310+1310,450 |
Number of tires | 12 |
Tires | 12R22.5 12PR |
Others | |
The self-unloading method is rear unloading; the side protection device is made of Q235 steel and is connected by bolts; the rear lower protection device is made of Q235 steel and is connected by welding; the cross-sectional dimensions of the rear lower protection device are 140mmx60mm, and the ground clearance is 450mm; ABS model/manufacturer: CM2XL-4S/2M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., with different mudguard structures available as options. | |
