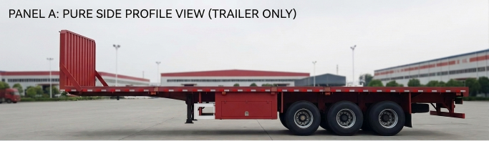

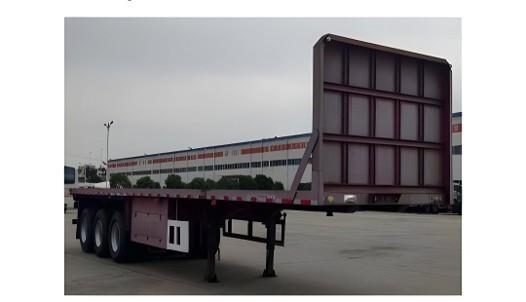

Flatbed semi-trailer
1. Side/Rear Protection Material: Q235 carbon structural steel (high strength, good weldability, durable load-bearing capacity)
2. Side Protection Connection: Double fixing with welding and bolts, sturdy and reliable
3. Rear Protection Construction: Fully welded structure, cross-section dimensions 140×50mm
4. Ground Clearance: Rear protection ground clearance 480mm, meeting safety standards
5. Optional Configurations: Front mudguard, front and rear protection styles, air suspension, taillights (optional)
conforming to Chinese national standards(GB)
Vehicle technical parameter | |
Product name | Flatbed semi-trailer |
Overall Dimensions | 13000,12500,12000x2500,2550x1500,2 |
Cargo compartment size | xx |
Total mass | 40000 |
Rated load mass | 34000 |
Curb weight | 6000 |
Chassis | |
Axle | 3 |
Wheelbase | 6840+1310+1310,6600+1310+1310 |
Number of tires | 12 |
Tires | 11.00R20 12PR,11.00-20 12PR,12R22.5 |
Other | |
The vehicle length = 13000mm, the wheelbase is 6840+1310+1310mm, and the rear overhang is 2240mm; the wheelbase is 6600+1310+1310mm, and the rear overhang is 2380mm; the wheelbase is 6680+1310+1310mm. and the rear overhang is 2300mm; when the vehicle length is 12500mm, the wheelbase is 6600-1310<1310mm, and the rear overhang is 1980mm; when the vehicle =12000mm, the wheelbase is 6380+1310+1310mm, and the rear overhang is 1700mm; this vehicle can be equipped with a front fender, and the overall height without the front fender is 1500mm; rear lights are optional; the ABS model is SAD-ABS4S/2M, and the manufacturer is: Liangshan Shun'anda Automotive Technology Co., Ltd. Optional front and rear protection styles; side and rear protection material: O235. Side protection connection method: a combination of welding and bolting. Rear protection is welded, cross-sectional dimensions (mm): 140x50, ground clearance: 480mm. Weight change due to optional features is within 3%; optional air suspension. Optional protection style. | |
